Software download:
VAG Vehicle Diagnostic Interface VVDI for the vehicles VW Audi is a Windows-Based diagnostic software. With the help of VAG Vehicle Diagnostic Interface VVDI you can perform operations with vehicles from the VAG group, which are in most cases unsupported from the producer diagnostic testers. The VAG Vehicle Diagnostic Interface VVDI for VAG provides you also full diagnostic capabilities for VAG-vehicles.
VAG Vehicle Diagnostic Interface VVDI
VAG Vehicle Diagnostic Interface VVDI Newest update:
1. Support NEC 24C32 change mileage through obd2, generate dealer's keys, read and write EEPROM and backup flash data.
2. Support GOLF5 MM7(9S12) change mileage through obd2, generate dealer's keys, read and write EEPROM and backup flash data.
3. Add TA special chip pre-program. Directly pre-program ID48 to TA2,TA3, TA4, TA5 chips.
Attention: IMMO PLUS 2.0 software and VAG Commander software can use VVDI hardware together, but previous VVDI customer need update hardware then can support IMMO Plus software.
Now IMMO PLUS has been updated to V4.0. Please download from our website to update.
Function:
1) Extracting security access codes (PIN) by OBDII
2) Programming keys by OBDII. Preparation of dealer's keys.
3) Mileage recalibration by OBDII
4) Clearing crash data DTCs by OBDII
5) Read/Program flash memory of engine control units by OBDII. Options for resetting the number of flashing attempts.
6) Exchange speed limit of MMI-TV system
1.Standard diagnostic functions:
1) Connect to the device using KWP2000 over TP2.0, KWP2000 over TP1.6, UDS over ISO transport protocol (CAN), KWP1281 or KWP2000 over K-Line
2) For all electronic control units reading identification data
3) For all electronic control units read error (DTCs)
4) For all electronic control units clear error (DTCs)
5) Scan all units
6) Broadcast requests
7) Measured values
8) Adaptation
2.Special functions:
1) Instrument CAN
(1) With this function you can establish diagnostic session with the Instrument cluster using KWP2000 over TP2.0
(2) You can read current odometer value
(3) You can change odometer value
(4) Added support for VDO Instrument Cluster 2006+
(5) Read/Program memory of instrument cluster immobilizer
(6) Reading security access code of the IMMOBILIZER
(7) Read/Write immobilizer related data
2) EZS - Kessy (Q7/A6/Allroad)
(1) With this function you can prepare dealer key/learn dealer key
(2) Read/Write eeprom from EZS - Kessy (Q7/A6/Allroad)
3) Instrument K-Line
(1) With this function you can establish diagnostic session with the Instrument cluster via K-Line (KWP1281 or KWP2000)
(2) You can Read/Change odometer value
(3) Read PIN code
(4) Read/Write eeprom
(5) Read ROM/Flash from the Instrument cluster
4) Engine Control Unit
(1) Read EDC17/MED17 flash memory
(2) Read/Write of flash memory (EDC15, EDC16 all types Read/Write Flashmemory via OBDII (K and CAN). Calculation of checksums while programming, ME7.1.1, MED9.x, ME7.5)
(3) Read/Write flash counters (EDC16)
(4) Read/Write eeprom (VAG-EDC15x, VAG-ME7.1.1, VAG-ME7.1, VAG-ME7.5, VAG-Cartronic ME7.8.)
(5) Extracting Security access code / PIN (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, EDC17, MED9.x, Simos PPD)
(6) Extracting Component security bytes (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, MED17.5.1, MED 9.x, Simos PPD)
(7) Enable/Disable immobilizer (EDC15, ME7.x, EDC16)
(8) Odometer correction (EDC15, EDC16)
5) Kessy adaptation
This function can be used for adaptation of brand new kessy units to the car. This adaptation can be by CAN TP2.0, K-KWP2000 and also can be used with Porsche Cayenne.
6) TV activation ED1/ED2
(1) Using this special function you can change speed limit of MMI compatible vehicles to change speed where TV becomes OFF
7) Key learning
With this function you can learn key/transponder to the vehicle
8) Dump tool
With this function you can calculate security access codes, change odometer and so on from EEPROM dump from the corresponding unit
9) Airbag
With this special function you can Read/Write EEPROM memory of the airbag module
Clear the crash data of the airbag module
10) Custom Read/Write
Using this application you can read/program memory in some electronic control unit
11) PIN Convertor
12) Service interval
Using this function you can perform reset of the service reminder, reset of the service interval parameters or change service interval options
13) Remote control adaptation
Using this application, you can learn remote controls
14) Navigation
Using this application, you can enable/disable the “Eject” button of the “Navigation” system
15) Cruise control system
Using this application, you can activate/deactivate a cruise control system and change the related
steering wheel electronics( SWE) configuration if SWE unit is available
Function in addition:
1.According to obd2, the latest VVDI supports nec 24c32 mileage change, dealer key generation, EPPROM data reading & writing, FLASH backup.
2.According to obd2, the latest VVDI supports GOLF6 MM7(9S12) mileage change, dealer key generation, EPPROM data reading & writing, FLASH backup.
3.Add the function of professional TA chip pre-program, it directly pre-programs 48 chip into TA2, TA3, TA4, TA5.
Support Car List:
1 AN002 - KM-CAN
1 AN003 - PIN-CAN
1 AN004 - IMMO panel
1 AN005 - IMMO panel EDC16
1 AN006 - KM/PIN K-Line
1 AN008 - Flash Counters
1 AN009 - Key learning
1 AN010 - Airbag EEPROM
1 AN011 - TV Activation
1 AN012A- EDC16 Odometer
1 AN012B- EDC16 EEP/PIN/IMMO-off
1 AN014 - EDC17 EEPROM
1 AN015 - Flash Memory ECU
1 AN016 - Dealer key learning
1 AN018 - Dealer key learning Q7
1 AN019 - Prepare Dealer Key Q7
1 AN021 - ME7 EEPROM by CAN
1 AN022 - CDC32xx Programmer
1 AN027 - Q7 2008
How to update VAG COMMANDER 8.6?
1. Please download this software: Commander update V1.3
2. Give us the serial number
3. We send you update file by email.
Pls notice:
IMMO PLUS 2.0 software and VAG COMMANDER software is allowed to run with a same hardware, but our old VVDI users need to update the hardware firmware before running IMMO plus software with the VAG COMMANDER hardware.
Before update, you have to use COMMANDER UPDATE 1.3 software to read out serial number and send it to your supplier. After your supplier send you the updating data file, please also use COMMANDER UPDATE 1.3 software to open it, then update the hardware, you need only click the button “UPDATE”, then a dialog box appears, then you just open the data file.

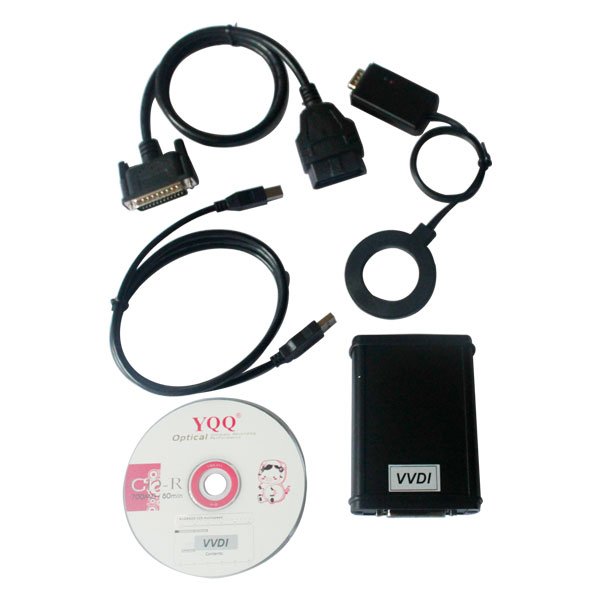

VAG Vehicle Diagnostic Interface VVDI display:
| |
